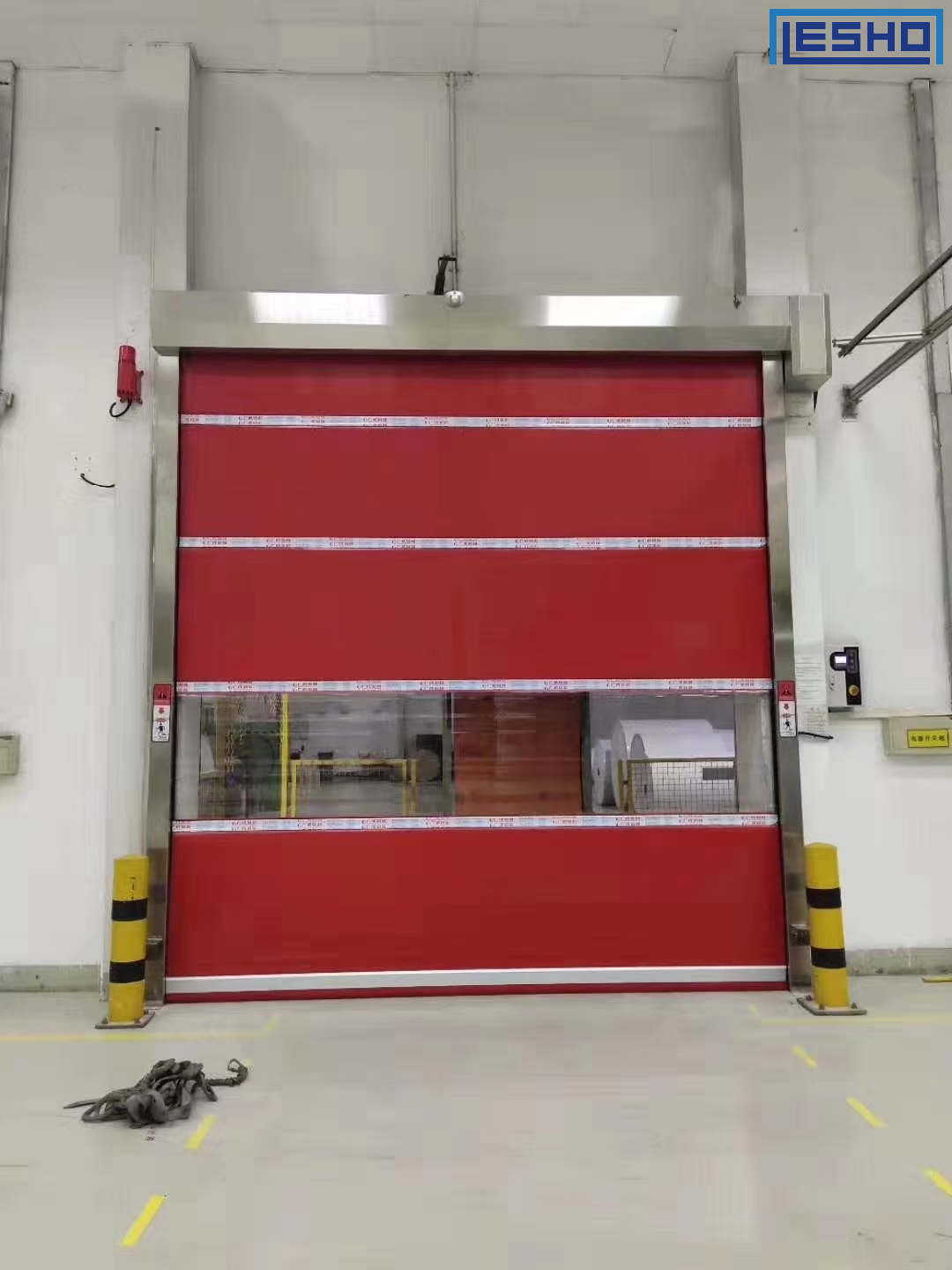

Application：In addition to the common characteristics of the High Speed door, the universal High speed door has the following characteristics: It is widely used in the logistics entrance area and the factory partition, which improves the logistics efficiency, maintains the indoor cleanliness, saves energy, and is the most economical and durable type high speed door.
Our High Speed door series include Universal Economy high speed door, zipper high speed door, cold storage high speed door, aluminum alloy hard high speed door, and stacked high speed door, protective room high speed door (robot protection, welding room, conveyor belt), explosion-proof high speed door, can Meet various needs in different application scenarios.
All of our high speed door series are equip with the advanced Italy AC Servo control system and have the following features(Except the explosion proof high speed door) :
1.High Speed Running:
Our servo Motor max speed is 2500 rpm,door max operating is 2.5m/s .
2.Precise limit .
The system use special double encoder design.
Double encoder can check with each other and avoid overshooting ,guarantee the precise limit.
3.Soft Running.
The Torque servo system can adjust Torque to load automatically when the door running ,and ensure the door running smoothly,soft star and stop.
4.High Frequency.
The Advanced AC private server permanent magnet motor with the servo control system ,make the door with better movement accuracy and quicker response and quicker response ,even under high frequency operation ,the motor can keep good working condition.And the test shows ,the motor can run more than 2000 times/day.

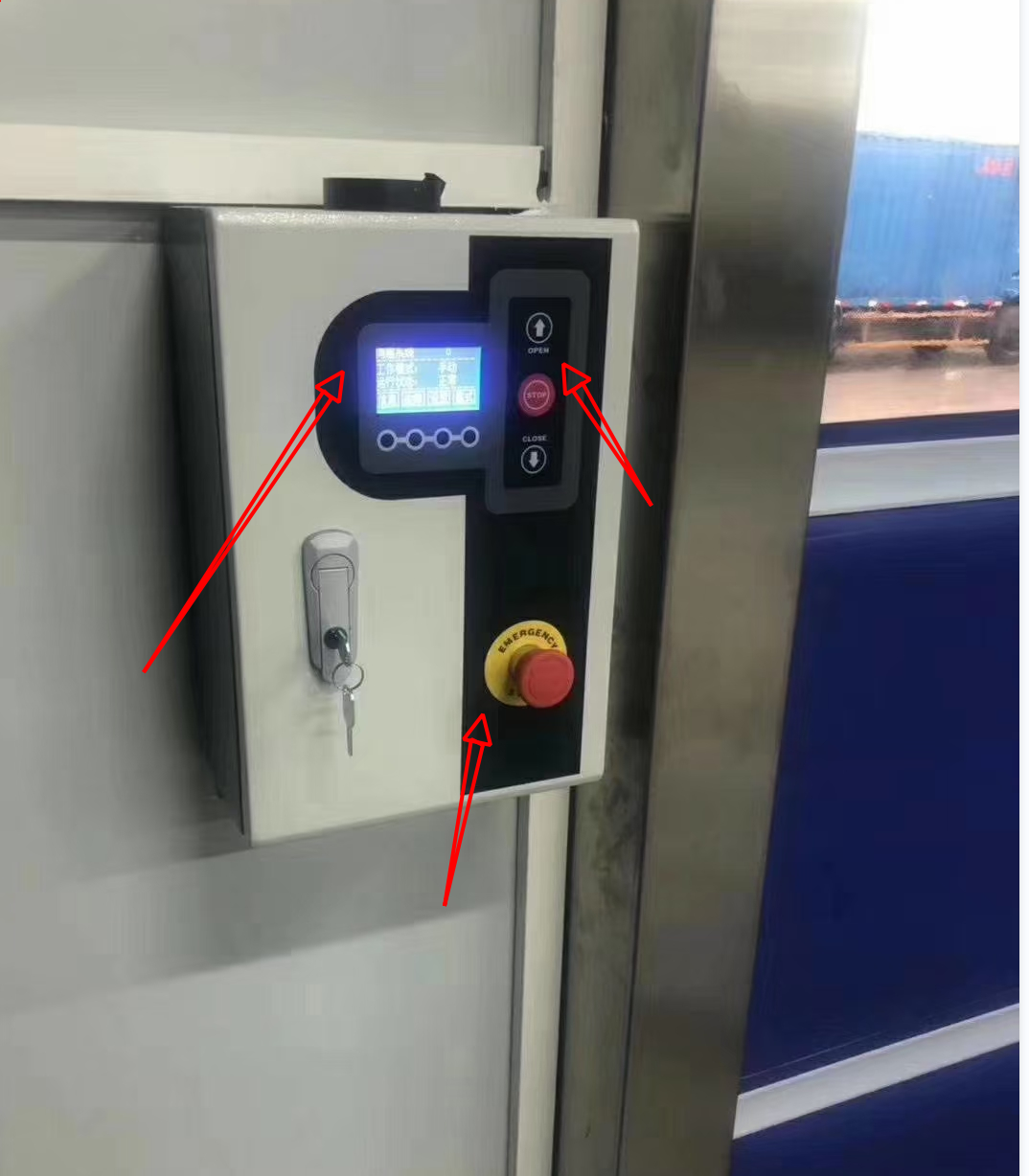

5.Control box Humanized design
User-friendly control box with LCD English Screen and self-diagnosis function,simple setting parameter and operation.
Integrated design, aviation connector, make the wire connection easily.
6. Interlocking, interconnection function.
Programmable external module, and comply with the MODBUS-RTU, RS 485 contact .Can be linked with other equipment ,like the air shower ,robot, VGA Vehicle and so on.
High Speed Door Beneficial：
1.Improve transport efficiency。
Especially for the traffic busy entrance ,the high speed door will great reduce the forklift or human waiting time ,great improve the transport efficiency ,thus improve the factory production efficient .
2.High level cleanness .
Our high speed door comply with GMP Standard ,easy to clean.
Great improve indoor environment cleanness ,inject the dust or insect into the workshop.
Widely used in the Printing and precision machinery industry, food or Pharmaceutical Industry,clean room ,and where there is high requirement of the cleanness .
3.Effective Insulation,super seal,Energy saving .
High speed opening and close and super seal will keep the indoor energy or cold air ,save the energy cost for the owner.Widely used for where there is temperature difference area.
4.Intelligent automation.
Standard operation : Two sides push button can meet the basic daily needs .
Additional operation way: Radar sensor ,Vehicle loop detector ,remote control ,pull switch will make the transport more convenient .
It can also be Connect with the production line ,Conveyor belt,VGA Vehicle and so on ,realize the automation intelligent work flow.
5..Excellent user safety performance.
Bottom soft wireless safety edge ,photos sensor ,Warning lamp are always the standard configuration.
1.Highly Customized.
We will according to the door application special customize the door for you.
Example :All 304 stainless steel structure for food or pharmaceutical industry ,Aluminum Alloy frame for the outside bad weather ,different color fit for your building environment ,etc.
2. Low maintenance.
Removable anti-wind bar makes it easier to clean and replace the curtain,and the PVC fabric spare parts is also easy to prepare ,greatly improve the door service life .
Technical data:
Usage: | Inside door/outside door |
Max dimension: | 6000mm wide*6000mm high |
Power supply: | 1-phase220±10%V,50/60 HZ.Or 3 phase,380±10%V,50/60 HZ |
Protection level of electric: | IP54 |
Wind resistance: | Beaufort scale 10(25m/s) |
Max opening speed: | 2.0m/s |
Max closingspeed: | 1.0m/s |
Available colors of fabric: | Yellow,Blue,Red,Grey,White, customize available |
Top cover and Frame: | Standard Powder coated galvanized steel . Optional :Aluminum Alloy and 304 stainless steel. |
Design Service Life: | 15 years |
