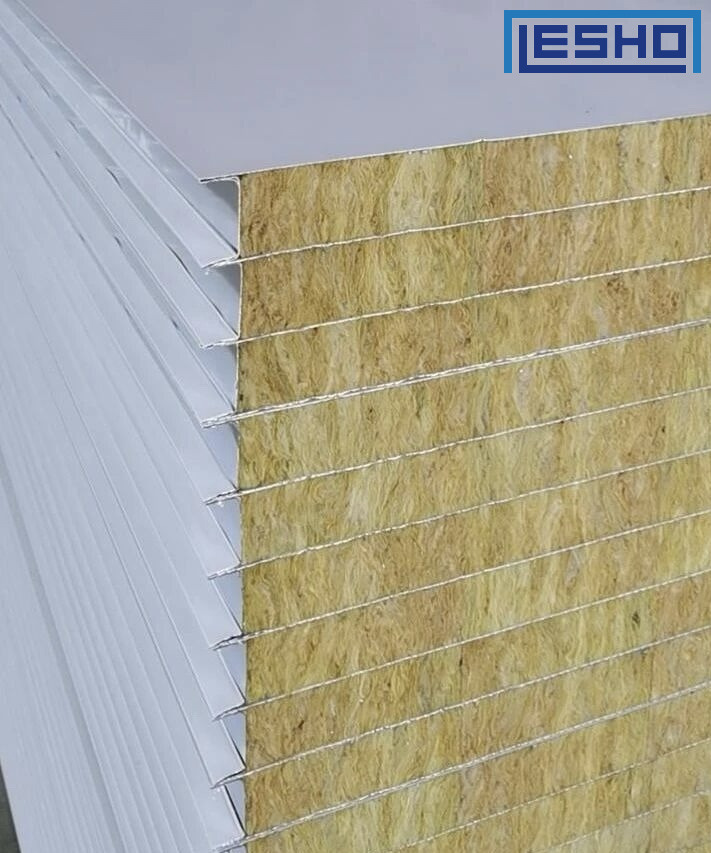

Mechanized cleanroom panels are made by laminating metal color-coated sheets as the surface material and rock wool, hollow magnesium oxide, or polyurethane as the core material using thermosetting adhesive in a continuous molding machine under heat and pressure. They are characterized by their light weight, thermal insulation, fast construction speed, no need for secondary decoration, and affordable price. They are a new type of enclosure structure material that integrates load-bearing capacity, thermal insulation, waterproofing, and decoration.
Common parameters:
| Item | Specification Details |
| Width | 950mm/ 1150mm |
| Thickness | 50, 75, 100, 150, 200, 250mm |
| Surface Mterial | High-quality Pre-painted Steel (PPGI), Galvanized Steel, or Stainless Steel, etc. |
| Fire Rating | Grade A / B1 / B2 (Depends on core material) |
| Length | Customized according to project requirements |
| Color | Full RAL color range available |
| Applications | Primary: Partitions and ceilings for Cleanroom areas in Pharmaceuticals, Electronics, Food processing, Medical, Aerospace, Biotechnology, and Laboratories. Secondary: Insulation and soundproofing for Drying rooms, Paint booths, Industrial equipment enclosures, Construction, and Shipbuilding. |
Structure and Manufacturing Process
1. Upper/Lower Surface Material: Material: High-strength color-coated metal sheet, galvanized, aluminized zinc, or stainless steel are optional. The surface coating has excellent corrosion resistance and cleanability. Features: Rich colors, long-lasting new appearance, meeting the aesthetic needs of modern industrial plants.

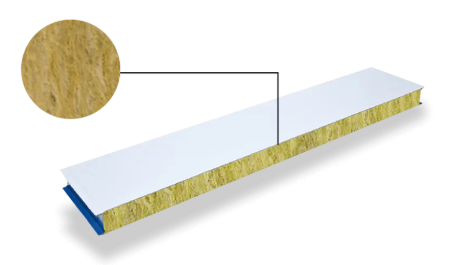

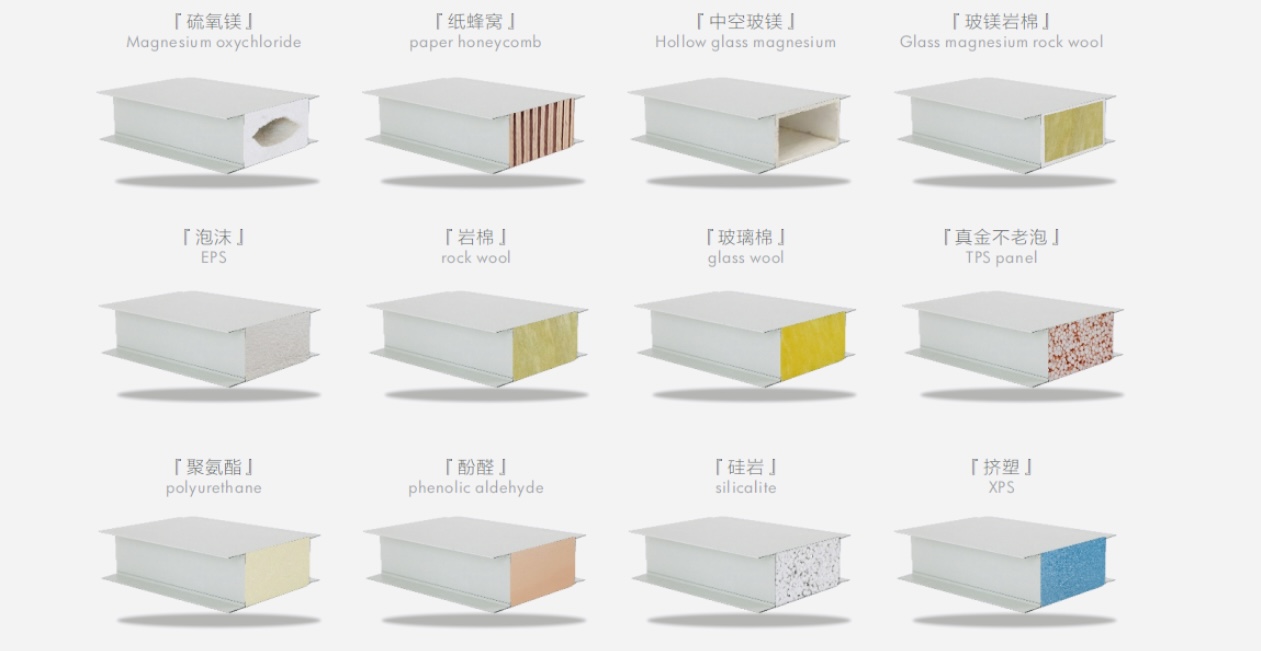

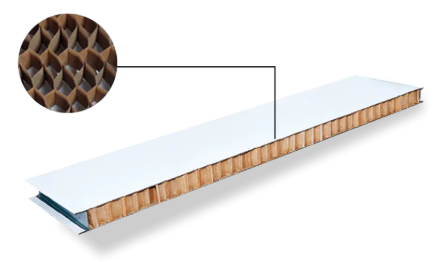

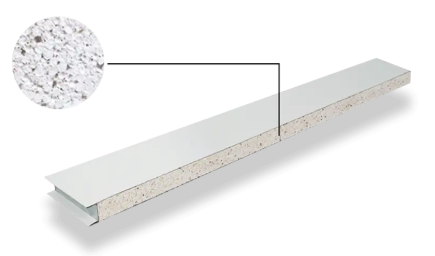

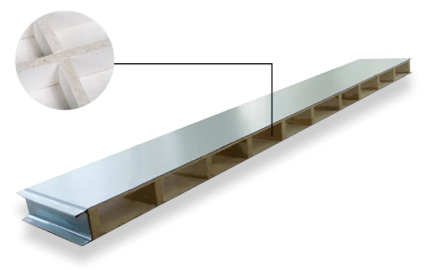

2. Core Material: Diverse Selection: Depending on different fireproofing and insulation requirements, materials such as rock wool (Class A non-combustible), magnesium oxide (Class A non-combustible), or polyurethane (high-efficiency insulation) can be selected. Features: The core material and surface material are bonded together with high-strength adhesive to form a stable overall structure.

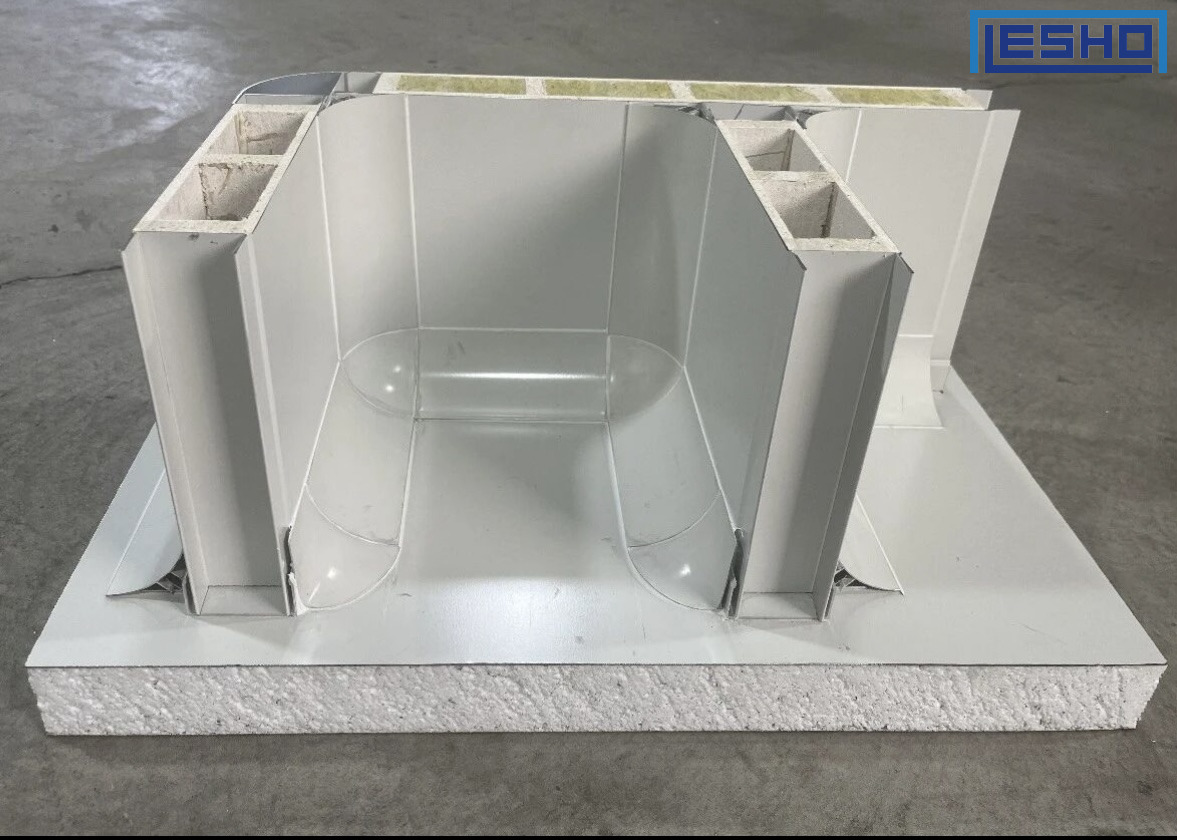

3. Unique Panel Edge Design: Adopts a tongue-and-groove joint structure. Advantages: Quick installation, tight joints, effectively preventing cold bridging, and improving the airtightness and insulation performance of the cleanroom.
Advantages of Cleanroom Panels
1. Lightweight and High-Strength: The composite structure significantly reduces building load and structural costs while ensuring load-bearing strength.
2. Energy Saving and Consumption Reduction: The high-efficiency air purification capabilities of cleanroom panels help reduce the operating load of equipment such as air conditioners, lowering energy consumption and operating costs.
3. Durable and Long-Lasting: Through special treatment, they possess excellent weather resistance and corrosion resistance, maintaining stable performance over long periods in various harsh environments.
4. Customized Services: Personalized customization is available to meet specific customer needs, providing air purification solutions tailored to their actual requirements.
